| MODELS |
HCM 1340 |
HCM 2150 |
HCM 2550 |
HCM 3060 |
| Batch Capacity |
40 Kg |
60 Kg |
80 Kg |
100 Kg |
| Heater mixer motor |
20/24 HP Dual speed
or 20 HP Single speed |
31/40 HP Dual speed
or 40 HP Single speed |
43/51 HP Dual speed
or 50 HP Single speed |
50/60 HP Dual speed
or 60 HP Single speed |
| Cooler Mixer Motor |
5.0 HP |
5.0 HP |
7.5 HP |
7.5 HP |
| Mixing Tool Speed RMP |
500/1000 Dual speed
or 750 single speed |
500/1000 Dual speed
or 750 single speed |
430/860 Dual speed
or 750 single speed |
430/860 Dual speed
or 750 single speed |
Drive control for Heater
Mixer Motor |
Dual speed starter
or Star delta/AC VF Drive |
Dual speed starter
or Star delta/AC VF Drive |
Dual speed starter
or Star delta/AC VF Drive |
Dual speed starter
or Star delta/AC VF Drive |
| Cooling Water requirement |
300 Lts. / hr. |
400 Lts. / hr. |
550 Lts. / hr. |
500 Lts. / hr. |
| Total Electrical required |
22 kw |
34 kw |
44 kw |
51 kw |
| Floor space required |
3.5 x 4.0 Meter |
3.7 x 4.2 Meter |
4 x 4.2 Meter |
4.2x4.5 Meter |
Motor capacity mentioned in above table is for making RPVC compound. Motor capacity will be higher than mentioned for making plasticized/ soft PVC compounds.
|

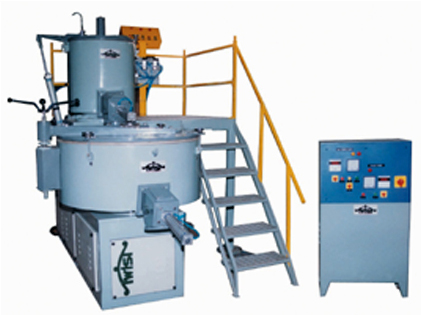

Vessel with dual jacket. Inner vessel fabricated from 5 mm thick stainless steel sheet.Outer jacket fabricated from heavy steel sheet.
Water inlet and outlets provided.Aluminum cast / fabricated lid and discharge valve will be pneumatic operated.Illumination pocket and liquid pouring inlet will be provided on the lid of the mixer. Blades made from stainless steel and treated for hard face coating on the mixing edges for long lasting. Stainless steel baffle plate with facility to change the angle and with thermocouple in the bottom remain in the contact of material under mixing. It will show the real temperature of mixing batch.
Teflon ring provided in the bottom of vessel, Oil seal housing with oil seal below the vessel providing for perfect sealing and avoid material leakage into bearings.Additional gland rope type sealing also provided in addition to above seals for special application mixers for pigments and MASTERBATCH MAKING PURPOSE.
Specially designed heavy duty C.I. Bearing and vessel housing gives equilibrium during mixing.Specially designed cone type pulley will be provided on mixer vessel shaft to minimize cantilever loading on the shaft. Control Panel for mixer motor having motor control, Ampere meter, Temperature controller and main switch.
|
