Models |
HM-35* |
HM-130 |
HM-210 |
HM-250 |
HM-300 |
Vessel volume in liters |
35 |
130 |
210 |
250 |
300 |
Mixing tool motor capacity with dual speed motor |
4 - 5 HP |
16-20 HP |
31-40 HP |
43-51 HP |
50-60 HP |
--- DO --- with single speed motor |
5.0 HP |
15 HP |
40 HP |
50 HP |
60 HP |
Max. Mixing capacity per batch |
10 Kg |
40 Kg |
60 Kg |
80 Kg |
100 Kg |
Max. Out put Kg per hr. |
40-50 |
160-200 |
240-300 |
320-400 |
400-500 |
*HM-35 model is laboratory model mixer. This model available with cooler mixer also.
Motor capacity mentioned in above table is for making RPVC compound. Motor capacity will be higher than mentioned for making plasticized/ soft PVC compounds.
|

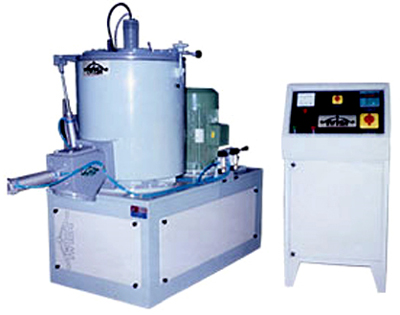

Vessel with dual jacket. Inner vessel fabricated from 5 mm thick stainless steel sheet.Outer jacket fabricated from heavy steel sheet.
Water inlet and outlets provided.Aluminum cast / fabricated lid and discharge valve will be pneumatic operated.Illumination pocket and liquid pouring inlet will be provided on the lid of the mixer. Blades made from stainless steel and treated for hard face coating on the mixing edges for long lasting. Stainless steel baffle plate with facility to change the angle and with thermocouple in the bottom remain in the contact of material under mixing. It will show the real temperature of mixing batch.
Teflon ring provided in the bottom of vessel, Oil seal housing with oil seal below the vessel providing for perfect sealing and avoid material leakage into bearings.Additional gland rope type sealing also provided in addition to above seals for special application mixers for pigments and MASTERBATCH MAKING PURPOSE.
Specially designed heavy duty C.I. Bearing and vessel housing gives equilibrium during mixing.Specially designed cone type pulley will be provided on mixer vessel shaft to minimize cantilever loading on the shaft. Control Panel for mixer motor having motor control, Ampere meter, Temperature controller and main switch. |
